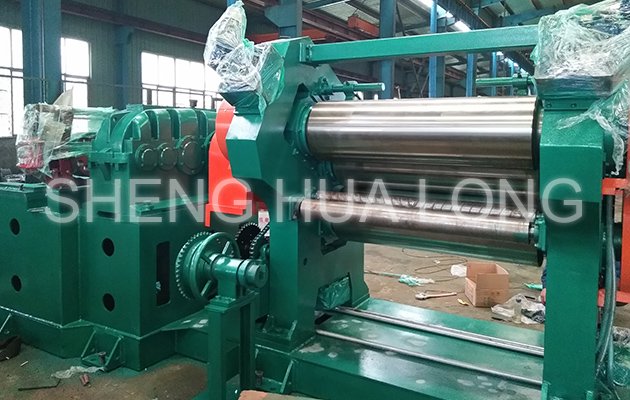

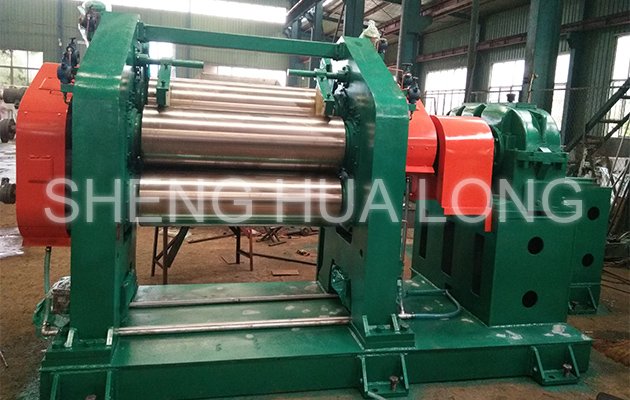

二辊压延机 - Qingdao shenghualong rubber machinery co.,ltd

}

Previous Next

MODLE ITEM			XY-2I(T)160x320	XY-2I(T)252x720	XY-2I(T)360x1120	XY-2I(T)x451400	XY-2I(T)550x1650	XY-2I(T)610x1730	XY-2I(T)710x2130	XY-2I(T)810x2430	XY-2I(T)860x2500
ROLL DIA		mm	160	252	360	450	550	610	710	810	860
ROLL WORKING LENGTH		mm	320	720	1120	1400	1650	1730	2130	2430	2500
ROLL RATIO			1:1	1:1	1:1	1：1	1:01	1:01	1:1	1:01	0.5-1
MIDDIE-ROLL LINEAR SPEED		m/min	7.79	1.2-12	3-20.2	2.5-24.8	2-18.7	4-36	2-20	2-20	3月30日
ADJUSTING NIP RANGE		mm	0-4.5	0-6	0-10	0-10	0-12	0-15	0.5-25	0.5-25	0-30
MIN CALENDERING PRODUCT THICKNESS		mm	0.2	0.2	0.2	0.2	0.2	0.2	0.5	0.5	0.5
CALENDERING PRODUCT WIDTH		mm	250	580	920	1250	1600	1500	1850	2150	2200
MOTOR POWER		kw	5.5	15	37	45	75	90	110	160	132kwx2
	L	mm	2200	3950	5400	7013	7200	5987	8150	8690	12000
	W	mm	530	1110	1542	1595	1760	1860	3760	3139	3200
	H	mm	1470	1590	1681	2446	2760	2988	3630	4270	4050
ABOUT WEIGHT		t	～1.2	～5	～11.5	～14	～24	～30	～49	～62	～85
