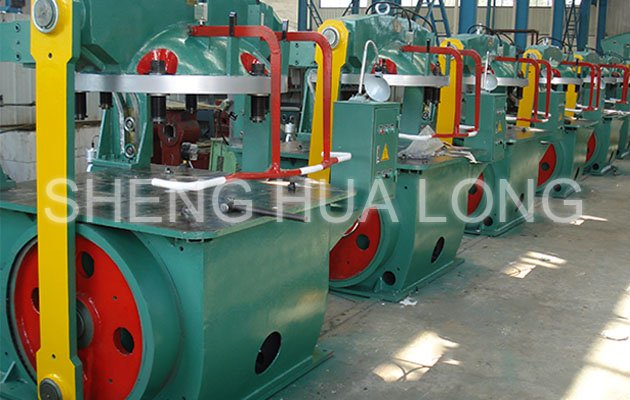

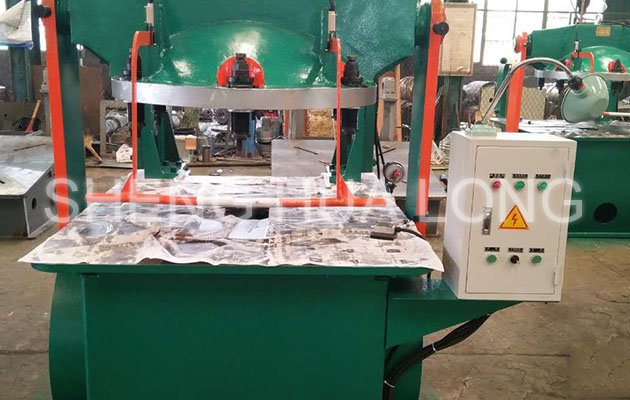

Lln-1200 inner tube vulcanizing machine

Previous Next


Type Technical parameter	LLN-1200	LLN-1250	LLN-1430
(MN) Total pressure	0.5	0.55	0.85
Max Diameter of Vulcanized Model	1180	1250	1300
Max Height of Vulcanized Model	360	420	450
Motor Power/ Revolution	5.5kw/960rpm	5.5kw/960rpm	5.5kw/960rpm
(Mpa) Steam Pressure	0.7	0.7	0.7
(Mpa) Air Pressure	0.6	0.6	0.6
(Mpa) Inflating Pressure of Inner Tube	0.7	0.7	0.7
(s) Period of Start-up and Close model	5	各5.7	各9.65
(mm)Size( length×width×height)	1660 x1900 x1650	1770 x 2200 x1850	2710 x 2210 x 2060
